B-spline interpolation function

If the B-spline structure is defined, it can be used to define the B-spline interpolation function. In this chapter, we will continue with the examples from the B-spline structure section for the one and two dimensional case.

One dimensional case

In the B-spline structure section, we began with the example file rhine_data_cubic-nak.jl from the examples folder where we already defined the B-spline structure for the cubic B-spline interpolation with not-a-knot end condition and smoothing.

# Include packages
using TrixiBottomTopography
using Plots

# Get root directory
dir_path = pkgdir(TrixiBottomTopography)

# Define data path
data = string(dir_path, "/examples/data/rhine_data_1d_20_x.txt")

# Define B-spline structure
spline_struct = CubicBSpline(data; end_condition = "not-a-knot", smoothing_factor = 999)

To define the B-spline interpolation function for a variable x, we use the spline_interpolation function. For the one dimensional case, this function is implemented as spline_interpolation(linear_struct, x) and spline_interpolation(cubic_struct, x).

# Define B-spline interpolation function
spline_func(x) = spline_interpolation(spline_struct, x)

This defines the cubic B-spline interpolation function with not-a-knot end condition and smoothing with respect to variable x from the previously created spline_struct. If we want to visualize the interpolation function with 100 interpolation points, we define the following:

# Define interpolation points
n = 100
x_int_pts = Vector(LinRange(spline_struct.x[1], spline_struct.x[end], n))

and evaluate to obtain the corresponding y values by:

# Get interpolated values
y_int_pts = spline_func.(x_int_pts)

Plotting the interpolated points can be done via

# Plotting
pyplot()
plot(x_int_pts, y_int_pts,
     xlabel="ETRS89 East", ylabel="DHHN2016 Height",
     label="Bottom topography",
     title="Cubic B-spline interpolation with not-a-knot end condition and smoothing")

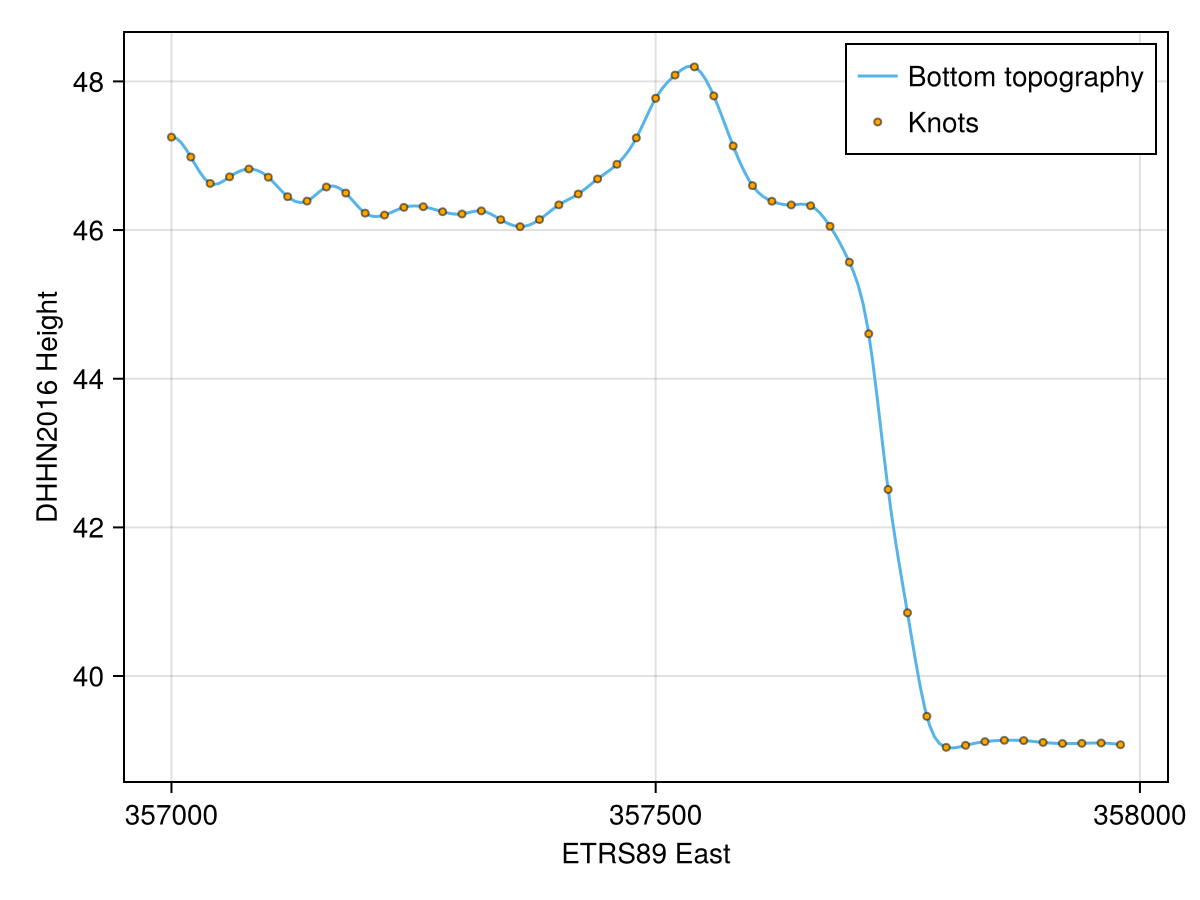

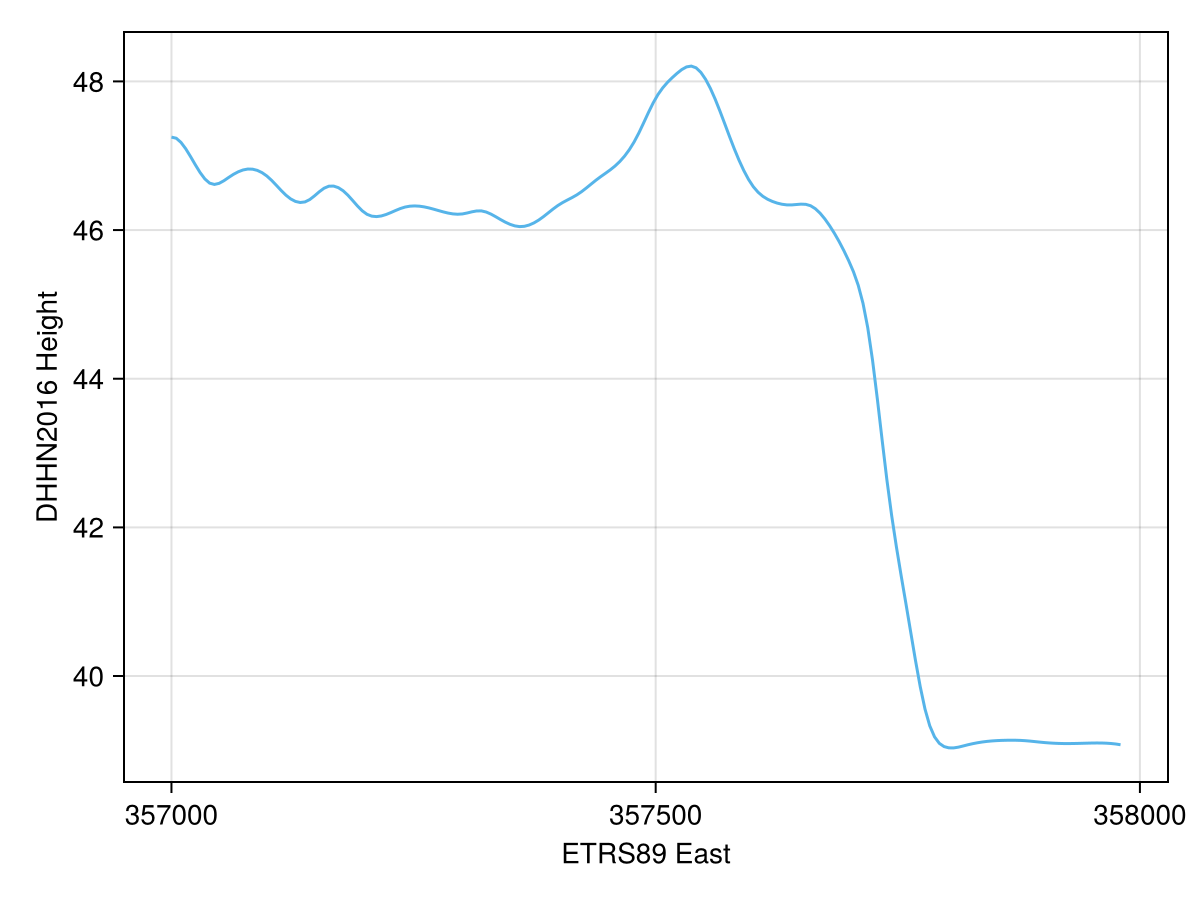

gives the following representation:


Two dimensional case

In the B-spline structure section, we examined the example file rhine_data_bicubic-nak.jl from the examples folder where we already created the B-spline structure for the bicubic B-spline interpolation with not-a-knot end condition and smoothing.

# Include packages
using TrixiBottomTopography
using Plots

# Get root directory
dir_path = pkgdir(TrixiBottomTopography)

# Define data path
data = string(dir_path, "/examples/data/rhine_data_2d_20.txt")

# Define B-spline structure
spline_struct = BicubicBSpline(data; end_condition = "not-a-knot", smoothing_factor = 9999)

To define the B-spline interpolation function for variables x and y, we use the spline_interpolation function for the two dimensional case. This functionality is implemented as spline_interpolation(bilinear_struct, x, y) and spline_interpolation(bicubic_struct, x, y).

# Define B-spline interpolation function
spline_func(x,y) = spline_interpolation(spline_struct, x, y)

This defines the bicubic B-spline interpolation function with not-a-knot end condition and smoothing for variables x and y due to the previously constructed spline_struct. If we want to visualize the bicubic interpolation function with 100 interpolation points in each spatial direction, we define:

# Define interpolation points
n = 100
x_int_pts = Vector(LinRange(spline_struct.x[1], spline_struct.x[end], n))
y_int_pts = Vector(LinRange(spline_struct.y[1], spline_struct.y[end], n))

To fill a matrix z_int_pts which contains the corresponding z values for x_int_pts and y_int_pts, we define a helper function fill_sol_mat:

# Helper function to fill the solution matrix
# Input parameters:
#  - f: spline function
#  - x: vector of x values
#  - y: vector of y values
function fill_sol_mat(f, x, y)

  # Get dimensions for solution matrix
  n = length(x)
  m = length(y)

  # Create empty solution matrix
  z = zeros(n,m)

  # Fill solution matrix
  for i in 1:n, j in 1:m
    # Evaluate spline functions
    # at given x,y values
    z[j,i] = f(x[i], y[j])
  end

  # Return solution matrix
  return z
end

and evaluate to obtain the z_int_pts values by setting:

# Get interpolated matrix
z_int_pts = fill_sol_mat(spline_func, x_int_pts, y_int_pts)

Plotting the interpolated values

# Plotting
pyplot()
surface(x_int_pts, y_int_pts, z_int_pts, camera=(-30,30),
        xlabel="ETRS89\n East", ylabel="ETRS89\n North", zlabel="DHHN2016\n Height",
        label="Bottom topography",
        title="Cubic B-spline interpolation with not-a-knot end condition")

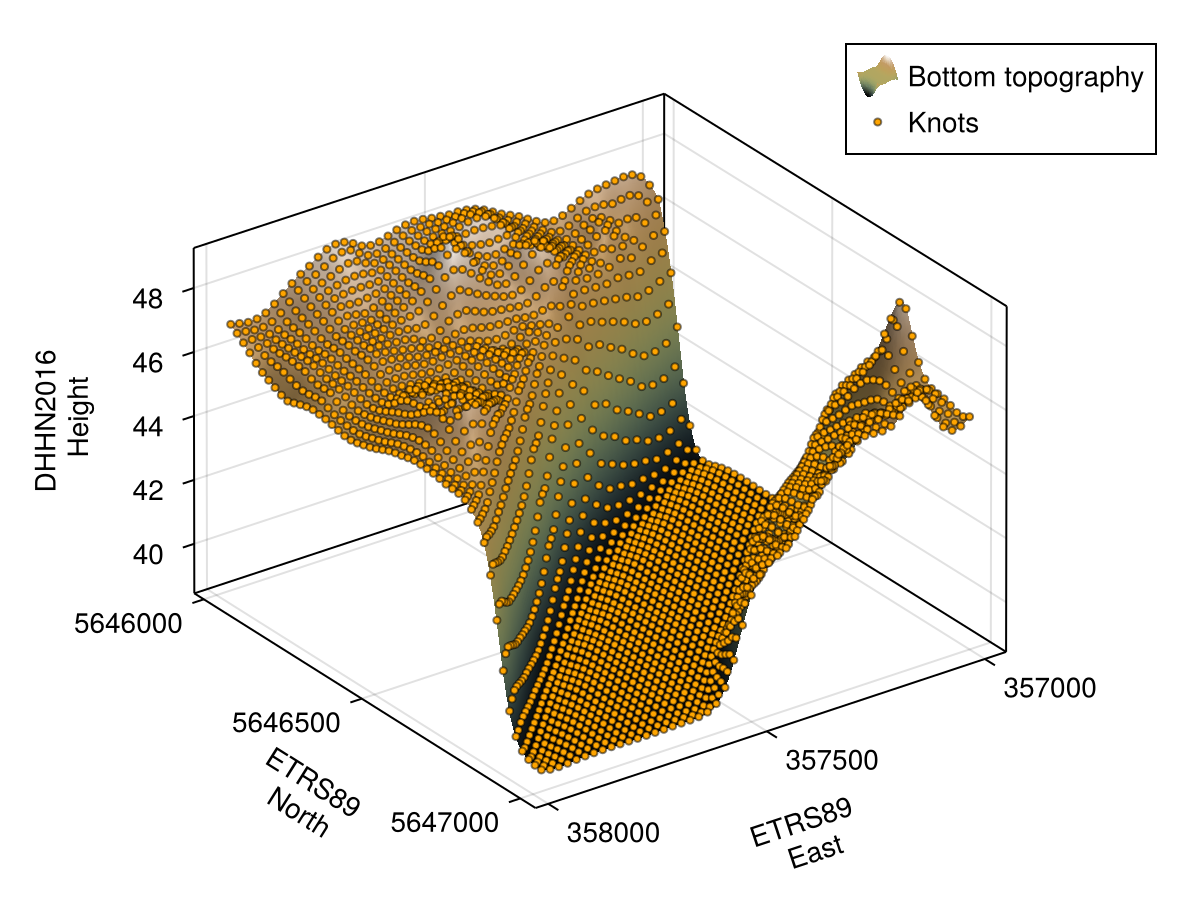

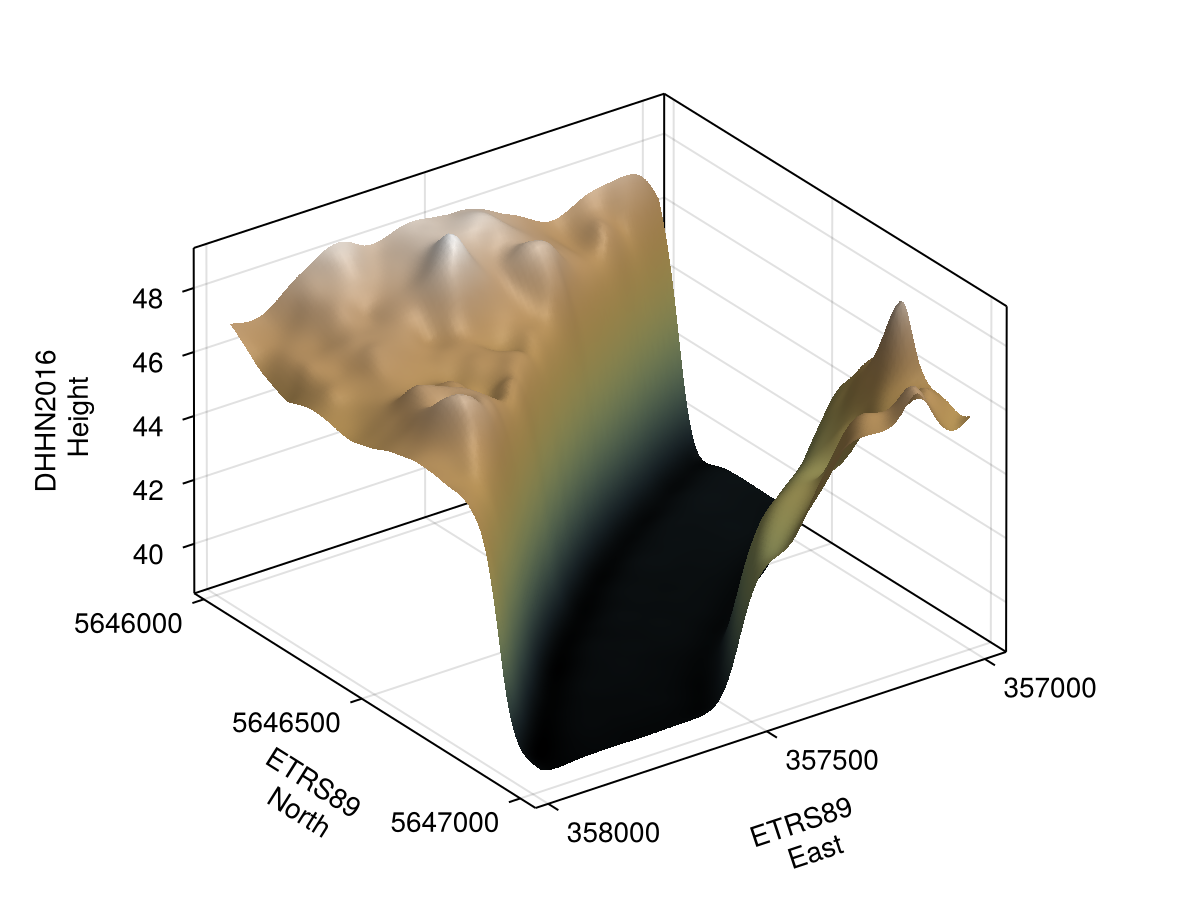

gives the following representation:
