Fluid-structure interaction with rigid bodies
This tutorial introduces fluid-structure interaction (FSI) with the RigidBodySystem. We build a simplified version of examples/fsi/falling_rotating_rigid_squares_2d.jl, where two rigid squares with initial angular velocity fall into a water tank. Compared to the example file, we use a coarser resolution to see results quickly. For more details on the general setup of tank and fluid, see the tutorial on setting up a simulation.
We will build up the simulation step by step:
- Rigid bodies without any interaction.
- Fluid-structure interaction, but without rigid-rigid or rigid-wall contact.
- Full simulation with fluid-structure interaction and contact.
- Using a different geometry.
using TrixiParticles
using OrdinaryDiffEq
using PlotsResolution and basic setup
As in the other tutorials, we start by defining the particle spacing. We use the same spacing for the fluid and the rigid bodies so that the coupling operates on the same particle resolution.
fluid_particle_spacing = 0.04
structure_particle_spacing = fluid_particle_spacing
boundary_layers = 3
spacing_ratio = 1The setup is a rectangular tank with an open top.
gravity = 9.81
tspan = (0.0, 1.0)
tspan2 = (0.0, 0.6) # shorter simulation time required for some simulations below
initial_fluid_size = (2.0, 1.0)
tank_size = (2.0, 2.0)
fluid_density = 1000.0
sound_speed = 100.0
state_equation = StateEquationCole(; sound_speed, reference_density=fluid_density,
exponent=1)
tank = RectangularTank(fluid_particle_spacing, initial_fluid_size, tank_size, fluid_density,
n_layers=boundary_layers, spacing_ratio=spacing_ratio,
faces=(true, true, true, false),
acceleration=(0.0, -gravity), state_equation=state_equation)Rigid body geometry
Next, we define two rigid squares. Their physical density determines whether they tend to float or sink, while the initial angular velocity prescribes the rigid-body rotation.
square1_side_length = 0.4
square2_side_length = 0.3
square1_density = 600.0
square2_density = 2000.0
square1_nparticles_side = round(Int, square1_side_length / structure_particle_spacing)
square2_nparticles_side = round(Int, square2_side_length / structure_particle_spacing)
square1_bottom_left = (0.4, 1.25)
square2_bottom_left = (1.25, 1.30)
square1_angular_velocity = 5.0
square2_angular_velocity = -7.5
square1 = RectangularShape(structure_particle_spacing,
(square1_nparticles_side, square1_nparticles_side),
square1_bottom_left,
density=square1_density)
square2 = RectangularShape(structure_particle_spacing,
(square2_nparticles_side, square2_nparticles_side),
square2_bottom_left,
density=square2_density)
square1 = apply_angular_velocity(square1, square1_angular_velocity)
square2 = apply_angular_velocity(square2, square2_angular_velocity)We can visualize the initial setup.

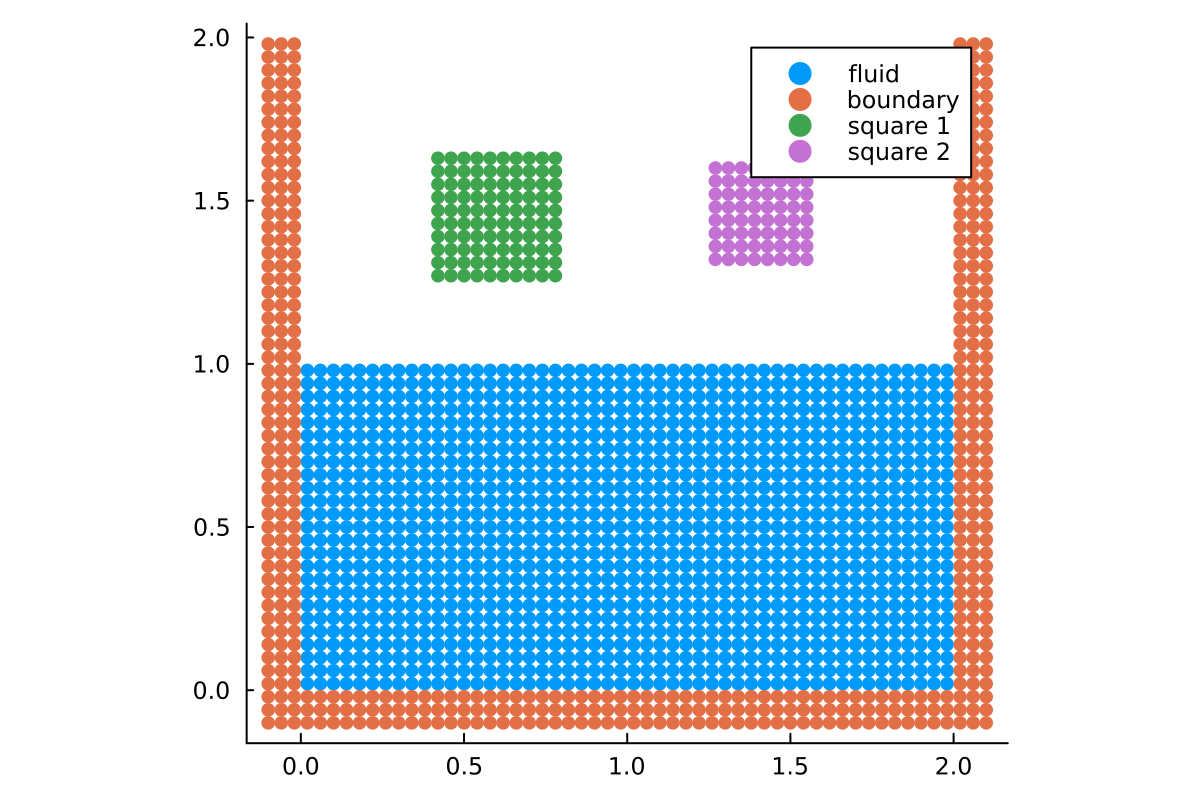

plot(tank.fluid, tank.boundary, square1, square2,
labels=["fluid" "boundary" "square 1" "square 2"])
Fluid system
For the water, we use a standard WCSPH discretization.
fluid_smoothing_length = 1.5 * fluid_particle_spacing
fluid_smoothing_kernel = WendlandC2Kernel{2}()
fluid_density_calculator = ContinuityDensity()
viscosity = ArtificialViscosityMonaghan(alpha=0.02, beta=0.0)
density_diffusion = DensityDiffusionMolteniColagrossi(delta=0.1)
fluid_system = WeaklyCompressibleSPHSystem(tank.fluid, fluid_density_calculator,
state_equation, fluid_smoothing_kernel,
fluid_smoothing_length, viscosity=viscosity,
density_diffusion=density_diffusion,
acceleration=(0.0, -gravity))Step 1: Without boundary model and contact model
In the first step, we simulate the rigid bodies without interaction with the fluid or the tank. This means we will create a Semidiscretization containing only the rigid body systems. The bodies will move according to the prescribed gravity and initial velocities, but without any collisions or fluid forces.
rigid_body_system_1_step1 = RigidBodySystem(square1; acceleration=(0.0, -gravity),
particle_spacing=structure_particle_spacing)
rigid_body_system_2_step1 = RigidBodySystem(square2; acceleration=(0.0, -gravity),
particle_spacing=structure_particle_spacing)Note that the Semidiscretization does not contain the fluid or boundary systems.
semi_step1 = Semidiscretization(rigid_body_system_1_step1, rigid_body_system_2_step1)
ode_step1 = semidiscretize(semi_step1, tspan2)
info_callback = InfoCallback(interval=100)
saving_callback = SolutionSavingCallback(dt=0.02, prefix="step1")
callbacks = CallbackSet(info_callback, saving_callback)sol_step1 = solve(ode_step1, RDPK3SpFSAL49(), save_everystep=false, callback=callbacks)Let's plot the final state of this simulation. We can see the final positions of the squares. The fluid and tank are plotted in the background to show that no interaction has taken place. As you can see, the squares fall through the fluid and the tank walls.

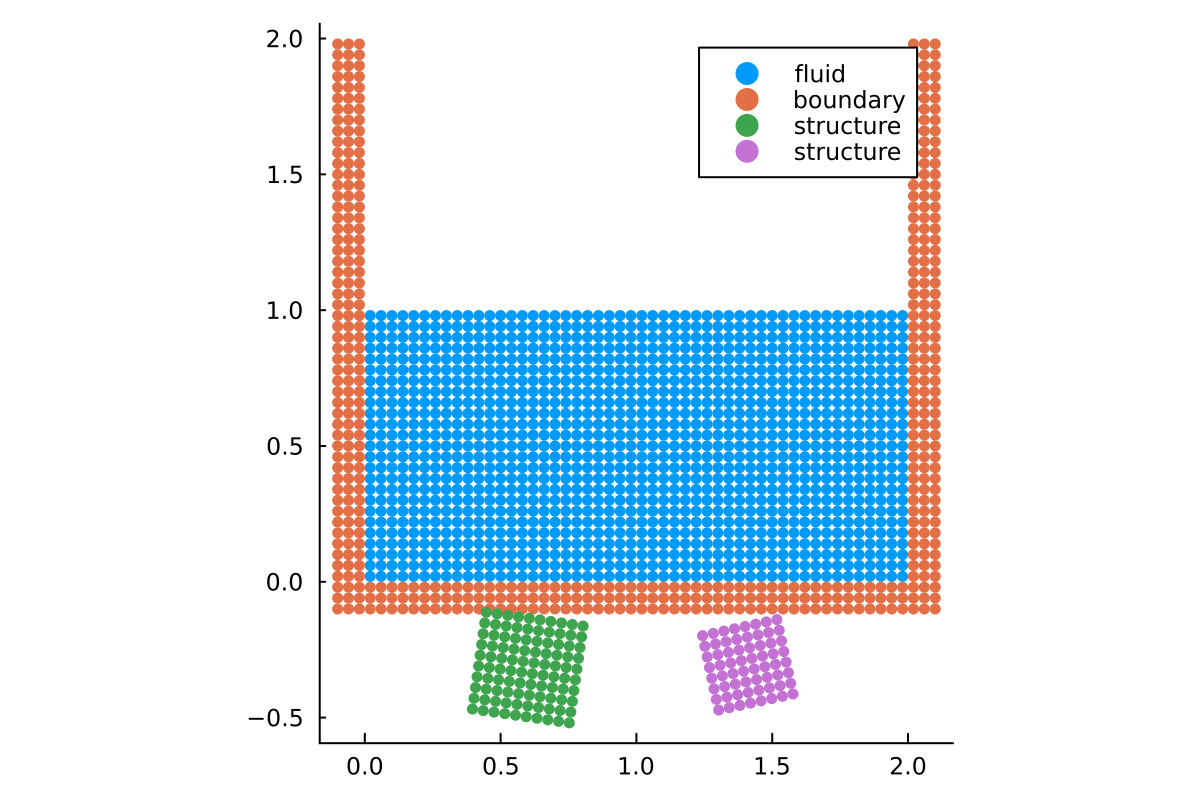

p = plot(tank.fluid, tank.boundary, labels=["fluid" "boundary"])
plot!(p, sol_step1, legend=:topright)
Step 2: With boundary model, without contact model
Now, we introduce fluid-structure interaction. We define a boundary_model for each rigid body, which allows them to interact with the fluid. We also add the tank boundary to the simulation. However, we still don't use a contact_model, so the rigid bodies will not collide with the tank or each other. For rigid-body FSI, the rigid particles need two separate pieces of information:
- their physical density, which is already stored in
square1andsquare2and determines the rigid-body mass and inertia, - a boundary model for the fluid coupling, which requires "hydrodynamic masses" and "hydrodynamic densities" on the rigid-body surface.
In this tutorial, we initialize the "hydrodynamic density" from the surrounding fluid density. See the docs on dummy particles for a definition for these terms.
boundary_density_calculator = AdamiPressureExtrapolation()
tank_boundary_model = BoundaryModelDummyParticles(tank.boundary.density,
tank.boundary.mass,
state_equation=state_equation,
boundary_density_calculator,
fluid_smoothing_kernel,
fluid_smoothing_length)
boundary_system = WallBoundarySystem(tank.boundary, tank_boundary_model)
function rigid_body_boundary_model(shape)
hydrodynamic_densities = fluid_density * ones(size(shape.density))
hydrodynamic_masses = hydrodynamic_densities *
structure_particle_spacing^ndims(fluid_system)
return BoundaryModelDummyParticles(hydrodynamic_densities, hydrodynamic_masses,
state_equation=state_equation,
boundary_density_calculator,
fluid_smoothing_kernel,
fluid_smoothing_length)
end
square1_boundary_model = rigid_body_boundary_model(square1)
square2_boundary_model = rigid_body_boundary_model(square2)
rigid_body_system_1_step2 = RigidBodySystem(square1;
boundary_model=square1_boundary_model,
acceleration=(0.0, -gravity),
particle_spacing=structure_particle_spacing)
rigid_body_system_2_step2 = RigidBodySystem(square2;
boundary_model=square2_boundary_model,
acceleration=(0.0, -gravity),
particle_spacing=structure_particle_spacing)
semi_step2 = Semidiscretization(fluid_system, boundary_system,
rigid_body_system_1_step2, rigid_body_system_2_step2)
ode_step2 = semidiscretize(semi_step2, tspan)sol_step2 = solve(ode_step2, RDPK3SpFSAL49(), save_everystep=false, callback=callbacks)In the plot, you can see the interaction between the fluid and the squares. However, the squares pass through the tank bottom and each other.

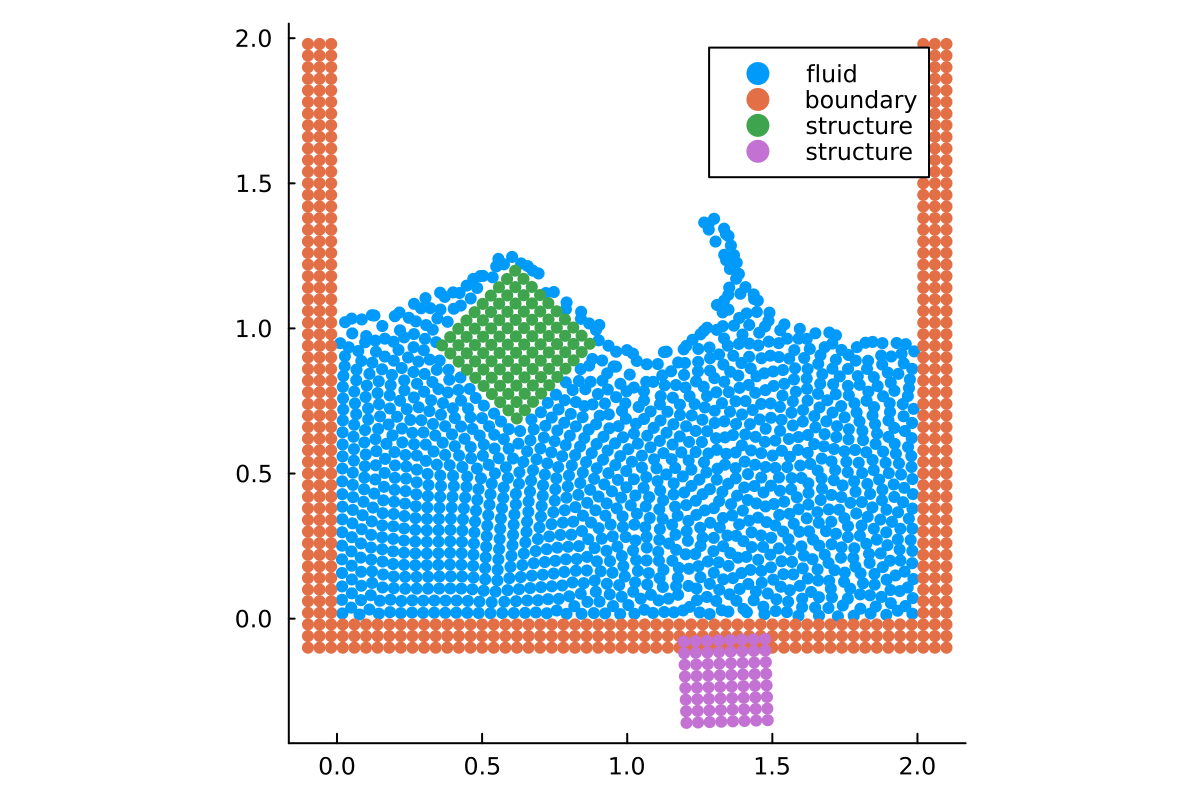

plot(sol_step2)
Step 3: With contact model
Finally, we add a contact_model to handle collisions between rigid bodies and between rigid bodies and the tank.
contact_model = RigidContactModel(; normal_stiffness=2.0e5,
normal_damping=150.0,
contact_distance=2.0 * structure_particle_spacing)
rigid_body_system_1_step3 = RigidBodySystem(square1;
boundary_model=square1_boundary_model,
contact_model=contact_model,
acceleration=(0.0, -gravity),
particle_spacing=structure_particle_spacing)
rigid_body_system_2_step3 = RigidBodySystem(square2;
boundary_model=square2_boundary_model,
contact_model=contact_model,
acceleration=(0.0, -gravity),
particle_spacing=structure_particle_spacing)
semi_step3 = Semidiscretization(fluid_system, boundary_system,
rigid_body_system_1_step3, rigid_body_system_2_step3)
ode_step3 = semidiscretize(semi_step3, tspan)sol_step3 = solve(ode_step3, RDPK3SpFSAL49(), save_everystep=false,

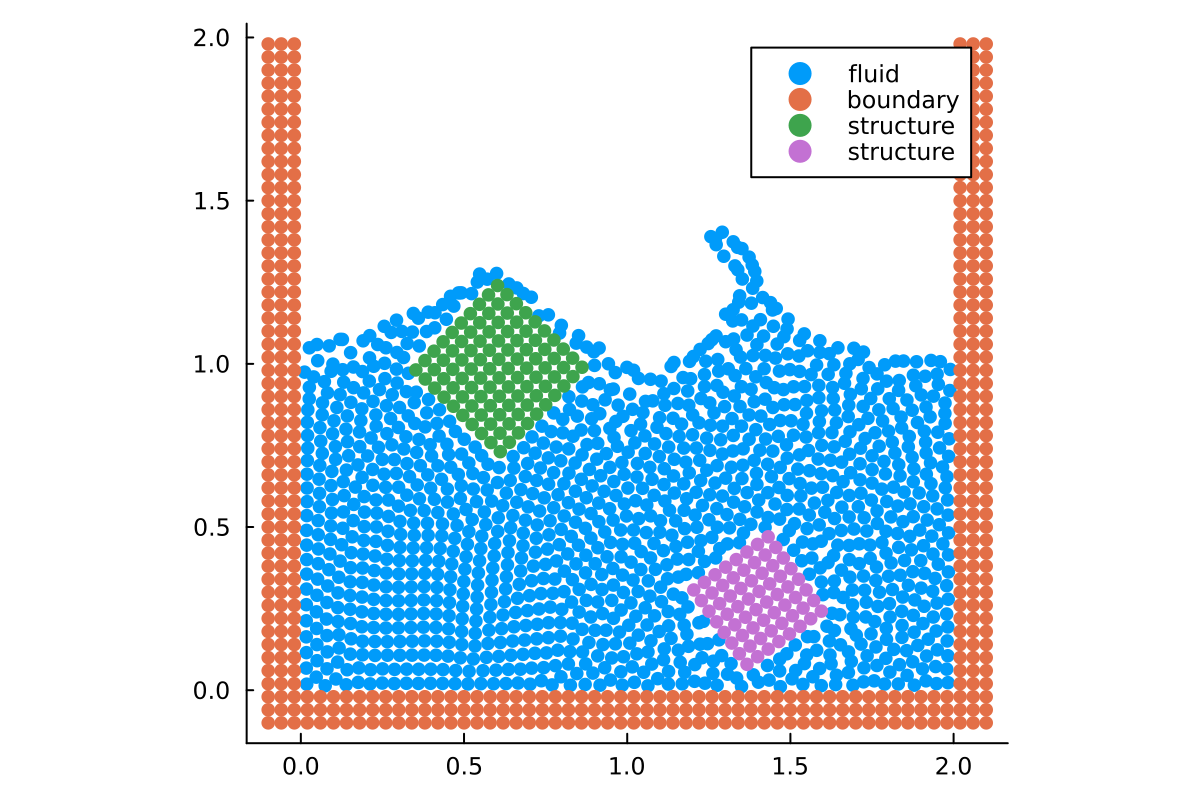

callback=callbacks, abstol=1e-6, reltol=1e-4, dtmax=2e-3)The plot now shows the full simulation. The squares collide with the tank bottom and each other.
plot(sol_step3)
Step 4: Different geometry
The same setup can be used with different geometries. Here, we replace the squares with circles.
circle1_radius = 0.2
circle2_radius = 0.15
circle1_center = (0.4, 1.25)
circle2_center = (1.25, 1.30)
circle1 = SphereShape(structure_particle_spacing, circle1_radius, circle1_center,
square1_density, sphere_type=RoundSphere())
circle2 = SphereShape(structure_particle_spacing, circle2_radius, circle2_center,
square2_density, sphere_type=RoundSphere())
circle1 = apply_angular_velocity(circle1, square1_angular_velocity)
circle2 = apply_angular_velocity(circle2, square2_angular_velocity)Let's visualize the new setup.

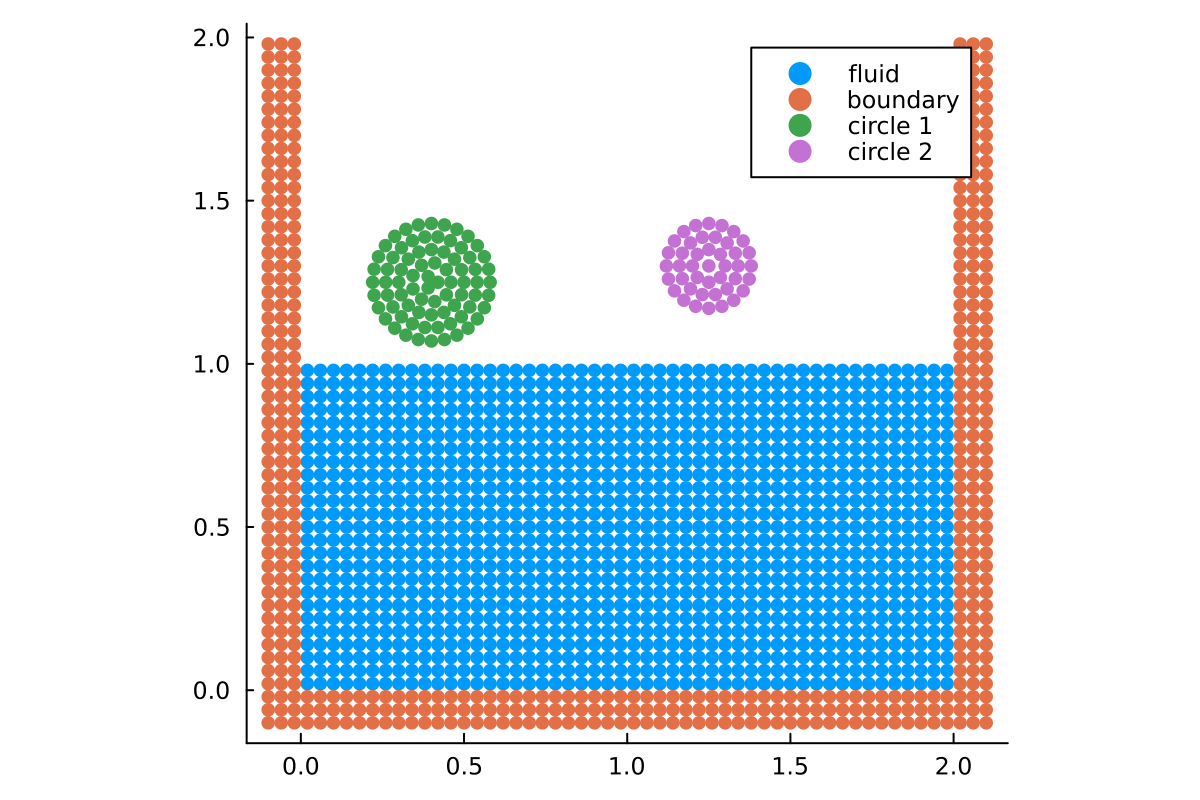

plot(tank.fluid, tank.boundary, circle1, circle2,
labels=["fluid" "boundary" "circle 1" "circle 2"])
circle1_boundary_model = rigid_body_boundary_model(circle1)
circle2_boundary_model = rigid_body_boundary_model(circle2)
rigid_body_system_1_step4 = RigidBodySystem(circle1;
boundary_model=circle1_boundary_model,
contact_model=contact_model,
acceleration=(0.0, -gravity),
particle_spacing=structure_particle_spacing)
rigid_body_system_2_step4 = RigidBodySystem(circle2;
boundary_model=circle2_boundary_model,
contact_model=contact_model,
acceleration=(0.0, -gravity),
particle_spacing=structure_particle_spacing)
semi_step4 = Semidiscretization(fluid_system, boundary_system,
rigid_body_system_1_step4, rigid_body_system_2_step4)
ode_step4 = semidiscretize(semi_step4, tspan)sol_step4 = solve(ode_step4, RDPK3SpFSAL49(), save_everystep=false,

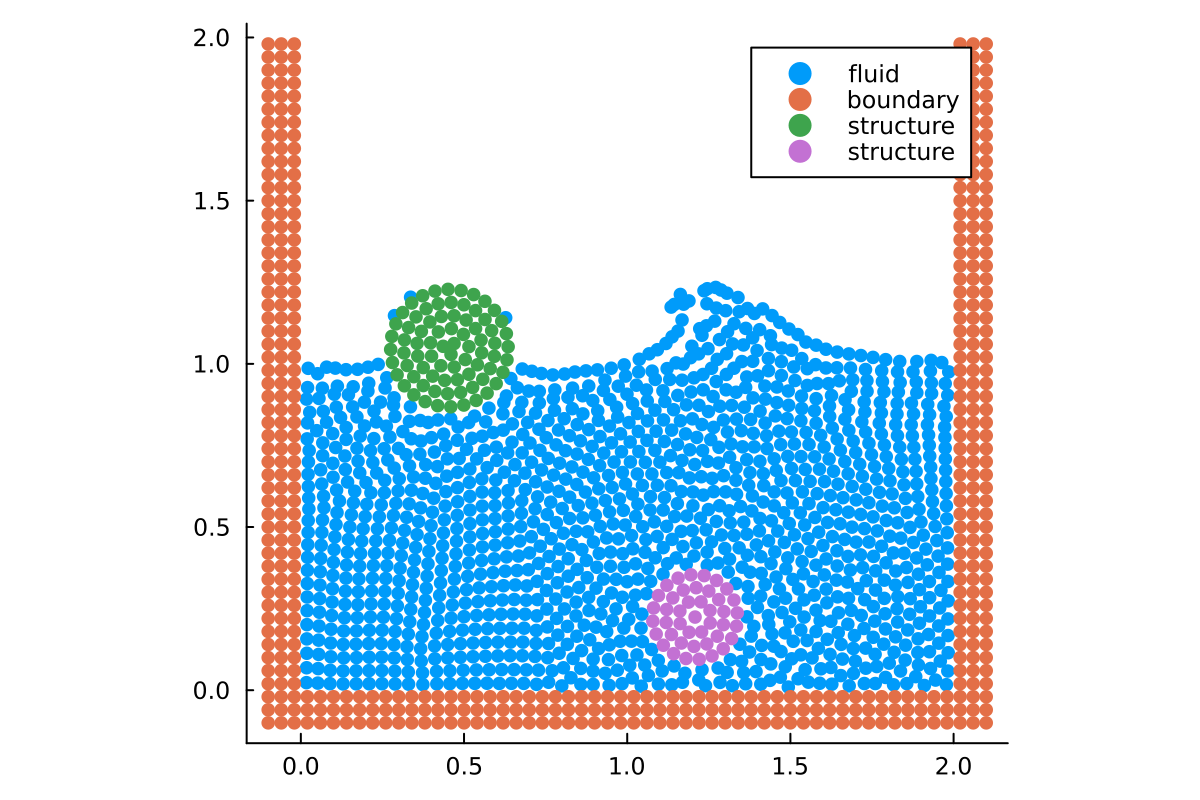

callback=callbacks, abstol=1e-6, reltol=1e-4, dtmax=2e-3)And here is the final plot with circles instead of squares.
plot(sol_step4)
Next steps

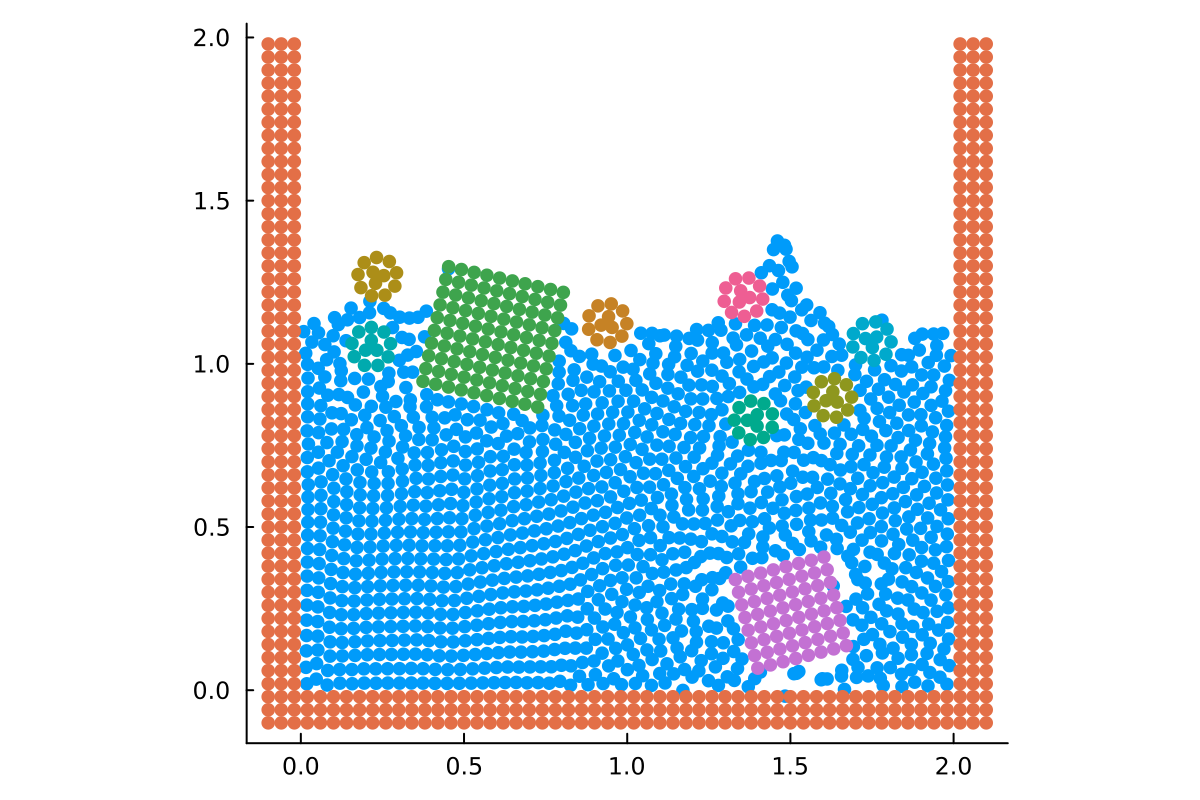

A natural extension is to add a layer of small rigid spheres on top of the initial water column. If we choose a density of 500.0, the spheres are lighter than the surrounding fluid and should mostly float while interacting with the waves and the falling squares. The example file examples/fsi/falling_rotating_rigid_squares_2d.jl contains the same idea as a commented-out block.
One possible implementation is:
small_sphere_radius = 0.08
small_sphere_density = 500.0
small_sphere_y = initial_fluid_size[2] + small_sphere_radius
small_sphere_x_positions = 0.25:(3 * small_sphere_radius):1.75
small_spheres = [SphereShape(structure_particle_spacing, small_sphere_radius,
(x, small_sphere_y), small_sphere_density,
sphere_type=RoundSphere())
for x in small_sphere_x_positions]
small_sphere_systems = [begin
sphere_boundary_model = rigid_body_boundary_model(sphere)
RigidBodySystem(sphere;
boundary_model=sphere_boundary_model,
contact_model=contact_model,
acceleration=(0.0, -gravity),
particle_spacing=structure_particle_spacing)
end
for sphere in small_spheres]
semi_next = Semidiscretization(fluid_system, boundary_system,
rigid_body_system_1_step3, rigid_body_system_2_step3,
small_sphere_systems...)
This modification is useful for studying many-body rigid-body FSI, including floating-particle rafts, repeated rigid-rigid contact, and wave-driven rearrangement.
Loading Geometries from Files
Instead of using predefined shapes like RectangularShape or SphereShape, you can load custom geometries from external files. For 2D, TrixiParticles.jl supports a simple ASCII format with the extension .asc.
An .asc file should contain a list of 2D coordinates, with x and y values separated by a space, and one point per line. The points should form a closed polygon. TrixiParticles.jl includes some example files in the examples/preprocessing/data directory.
Here is how you can load the hexagon.asc file from this directory, create a ComplexShape from it, and then use it in a simulation.
Load the geometry from an .asc file.
file = pkgdir(TrixiParticles, "examples", "preprocessing", "data", "hexagon.asc")
loaded_geometry = load_geometry(file)┌──────────────────────────────────────────────────────────────────────────────────────────────────┐
│ Polygon{2, Float64} │
│ ═══════════════════ │
│ #edges: …………………………………………………………… 6 │
└──────────────────────────────────────────────────────────────────────────────────────────────────┘Create a ComplexShape from the loaded geometry. We can specify the particle spacing, a starting position, and the density.
hexagon_density = 1500.0
hexagon_shape = ComplexShape(loaded_geometry, particle_spacing=2*structure_particle_spacing,
density=hexagon_density)
hexagon_shape.coordinates .*= (0.5, 0.5) # Scale the shape
hexagon_shape.coordinates .+= (1.0, 1.5) # Shift the shape to the desired position
hexagon_shape = TrixiParticles.@set hexagon_shape.particle_spacing = structure_particle_spacing┌──────────────────────────────────────────────────────────────────────────────────────────────────┐
│ InitialCondition │
│ ════════════════ │
│ #dimensions: ……………………………………………… 2 │
│ #particles: ………………………………………………… 398 │
│ particle spacing: ………………………………… 0.04 │
│ eltype: …………………………………………………………… Float64 │
│ coordinate eltype: ……………………………… Float64 │
└──────────────────────────────────────────────────────────────────────────────────────────────────┘Now, hexagon_shape can be used to create a RigidBodySystem just like the other shapes in this tutorial.
hexagon_boundary_model = rigid_body_boundary_model(hexagon_shape)
hexagon_system = RigidBodySystem(hexagon_shape;
boundary_model=hexagon_boundary_model,
contact_model=contact_model,
acceleration=(0.0, -gravity),
particle_spacing=structure_particle_spacing)┌──────────────────────────────────────────────────────────────────────────────────────────────────┐
│ RigidBodySystem{2} │
│ ══════════════════ │
│ #particles: ………………………………………………… 398 │
│ acceleration: …………………………………………… [0.0, -9.81] │
│ boundary model: ……………………………………… BoundaryModelDummyParticles(AdamiPressureExtrapolation, Nothing) │
└──────────────────────────────────────────────────────────────────────────────────────────────────┘You can then create a semidiscretization with this new system.
semi_hexagon = Semidiscretization(fluid_system, boundary_system, hexagon_system)
ode_step_hex = semidiscretize(semi_hexagon, (0.0, 0.4))
sol_step_hex = solve(ode_step_hex, RDPK3SpFSAL49(), abstol=1e-6, reltol=1e-5, dtmax=1e-3,
save_everystep=false)

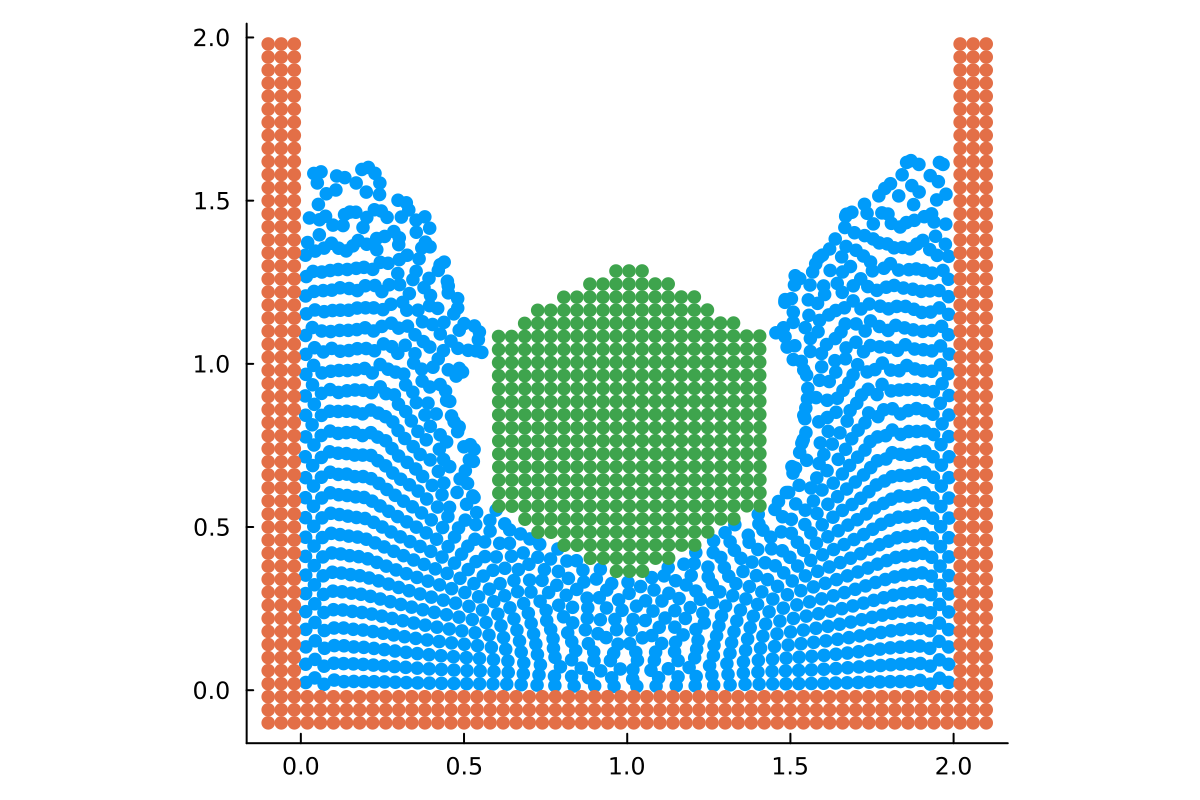

This allows you to simulate FSI with arbitrary 2D shapes.
Example .asc Files
You can find the .asc files used in this tutorial and other examples in the examples/preprocessing/data directory of the TrixiParticles.jl repository.
Some files can be found in examples/preprocessing/data. To use them, you can use pkgdir as shown above, for example:
file = pkgdir(TrixiParticles, "examples", "preprocessing", "data", "triangle.asc")
loaded_geometry = load_geometry(file)┌──────────────────────────────────────────────────────────────────────────────────────────────────┐
│ Polygon{2, Float64} │
│ ═══════════════════ │
│ #edges: …………………………………………………………… 3 │
└──────────────────────────────────────────────────────────────────────────────────────────────────┘This page was generated using Literate.jl.
